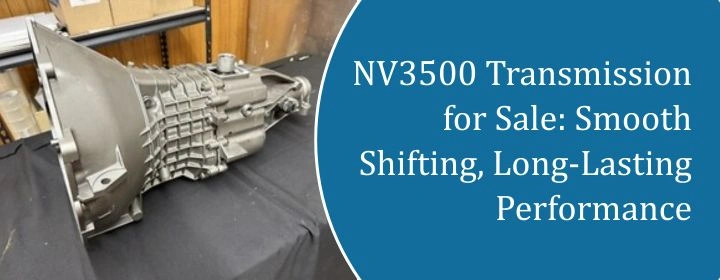

NV3500 Transmission for Sale: Smooth Shifting, Long-Lasting Performance

The NV3500 is one of those transmissions which is solid and just works for years. You will find this transmission in lots of light trucks from the 90’s and early 2000s in Dodge, Chevy, and GMC. And if it is well-maintained then it can go hundreds of miles. When you search for NV3500 transmission for sale, you want a transmission with right fit, condition and fair price.

It means you must know what transmission is, what vehicle it fits in and what to look out for when buying. Here in this blog, let’s go through with the straightforward basics to know exactly what you are dealing with.

What is the NV3500 Transmission?

The NV3500 Transmission is a 5-speed manual which is built by New Venture Gear. It was designed in such way that it can pick up half-tons but not heavy-duty rigs. Its case is made up from aluminum, bellhousing is also the part of the case and it used hydraulic clutch.

It is smooth than the old iron-cased truck gearboxes but still it has enough strength for daily work and towing. People like it because this transmission shifts cleanly and runs silently than older manual transmission which doesn’t even weigh a ton.

Features & Technical Specifications

If you’re checking NV3500 manual transmission specs, here’s what you’ll run into on most Dodge versions:

• Type: 5-speed manual
• Case: Cast aluminum, integral bellhousing
• Synchronizers: Brass
• Input shaft: 1-inch, 10-spline
• Output shaft: 27-spline, varies on some GM units
• Gear ratios as per Dodge specs:

1st: 4.01
2nd: 2.32
3rd: 1.40
4th: 1.00
5th: 0.73 (overdrive)
Reverse: 3.55

The overdrive 5th keeps RPMs down on the freeway, and 1st is low enough to get a loaded truck moving without riding the clutch too much.

Compatible Vehicle Models

This isn’t a universal transmission, fitment matters. The NV3500 came in:

Dodge:

• Ram 1500 from mid-90’s to early 2000’s
• Dakota pickups

GM:

• Chevy Silverado 1500 has light-duty trims
• GMC Sierra 1500 as same as Silverado
• Chevy S-10 and GMC Sonoma

A Dodge NV3500 won’t just bolt into a GM truck. The input shaft length, output spline, and bolt pattern can differ. If you’re buying a used NV3500 Transmission for sale, match it by year, brand, and sometimes even by the donor vehicle’s exact drivetrain.

Benefits of Buying a Used NV3500 Transmission

Price Advantage

A rebuilt or used Dodge transmission version of the NV3500 costs way less than a brand-new OEM unit. Sometimes you can get a solid used one for under a grand.

Proven Reliability

When serviced right, the NV3500 lasts. It is common to see these and it still shifts fine past 200K miles.

Good Driving Feel

Not all truck manuals are pleasant to drive. This one is. The shifts aren’t sloppy, and the gearing works well for both city driving and highway runs.

How to Choose a Reliable NV3500 Transmission for Sale

• Check Mileage: Aim to get a transmission with 75K mileage but well-maintained high-mileage transmission is also far better than poorly maintained low-mileage transmission.
• Inspect the Case: Cracks around the bellhousing area are a no-go.
• Spin the Input Shaft: It should turn smoothly with no grinding noises.
• Check for Play: Excessive shaft play can mean worn bearings.
• Verify the Match: Make sure it’s the Dodge or GM version your truck needs.

If you can, buy from a seller that pulls and tests transmissions rather than just yanking them from a wreck and selling ‘as-is’.

Shipping & Warranty Details

These aren’t light, but they’re not massive either. An NV3500 usually weighs around 110-120 lbs. Freight shipping is common, but if you’re close enough, picking it up saves a chunk of cash.

As for warranties:

• 30-day warranty is common on used units from salvage yards.
• 90 days is better if you can get it.
• 1-year is usually for rebuilt units.

Make sure you know if the warranty requires professional installation. Some sellers will void it if you install it yourself and something fails.

Conclusion

From the above gist, we conclude that if you need manual gearbox which is smooth to shift and holdup for a long haul then the NV3500 transmission for sale is worth considering. Pay attention to details like mileage, case condition and compatibility, whether you are searching rebuilt NV3500 transmission for Dodge Ram or clean gearbox for GM vehicle. Buying used or rebuilt saves serious money, and with the right pick, you’ll get years of solid service out of it. Take your time, check the specs, and you’ll end up with a transmission that does the job without breaking the bank.
